1 Static Gobo Wheel Sharply 10R Moving Head Beam 2.5° Beam Angle Stage Lighing

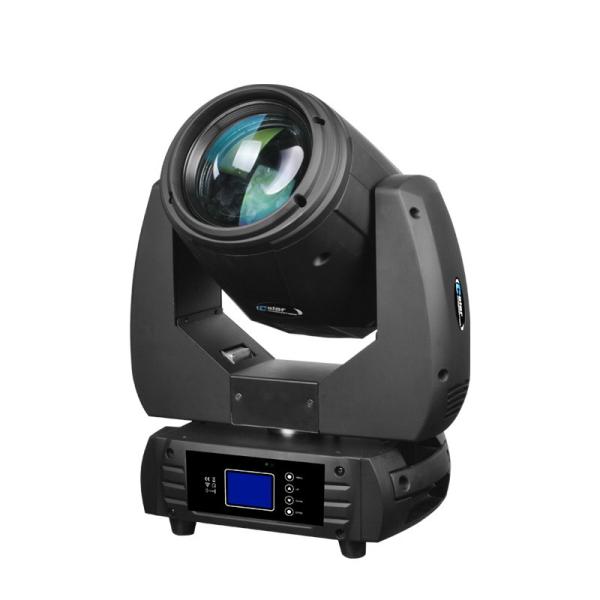

The MINIBEAM 280 is a fully new design by Color Imagination, aiming to bring a very compact and

lightweight housing moving head beam, as always, with very high light output and even coverage field,

to the market. The fixture is integrated with a full complement of professional characteristics including a

static gobo wheel, color wheel, 8 facet rotating prism, frost filter, motorized linear focus, variable speed

shutter/strobe, 0-100% linear dimmer, color time and gobo time controllable.

It’s applicable for large scale live concerts, TV productions, road shows, clubs, etc.

Quick Detail:

1. An OSRAM 280W lamp included
2. 2000 hours rated lamp source
3. Electronic ballast and power supply
4. Smooth and precise resolution for PAN/TILT movement
5. 630° /540° /360° PAN and 270°/180° /90° TILT movement optional
6. Scan position memory, auto reposition after unexpected movement
7. 2.5° Beam angle
8. Improved optics and flat beam field
9. No need for adjustment of reflector or lamp
10. Anti-reflection 136mm front lenses
11. 1 Static gobo wheel with 16 gobos plus open
12. 1 Color wheel with 11 colors plus open
13. Variable direction rainbow effect with speed adjustable
14. Motorized focus from near to far
15. 8-facet prism with variable speed and direction
16. Frost filter available (Hybrid effect for wash)
17. Dual flag mechanical dimming system
18. 20T/sec high speed LED shutter/strobe effect with variable speed
19. Preset variable/random strobe and dimming pulse effect
20. 13/15 DMX channels USITT DMX-512 (15CH for vector mode)
21. Vector mode with blackout MIB function
22. DMX512, master-slave, and sound activated controllable or auto operation (8 built-in
23. programs)
24. DMX recorder and edit function integrated
25. Blue background LCD display
26. Display reversible for up side down application
27. Powercon IN/OUT
28. 3-Pin XLR connectors IN/OUT
29. Fan cooling system
30. Constant temperature readout and management function
31. Lamp using time readable on the display
32. -35-45°C max ambient temperature
33. IP20 protection rating
34. 55dB at 3’dB rating
35. 2*1/4 turn fastening Omega clamps
36. 1*Safety attachment point available

Specification:

• Input Voltage:AC90-260V 50/60Hz
• LED Quantities:1* OSRAM 280W lamp
• Control Signal:DMX512, master-slave and sound activated or auto operation
• Control Channel:13/15 DMX channels USITT DMX-512
• Power Consumption: 330W
• Dimensions:203(D)*348(W)*434(H)mm
• Packing Dimensions:490(D)*370(W)*375(H)mm
• Net Weight:13.2kg
• Gross Weight: 15.2kg

Applications:

Disco and Club

Live performance

Stage show

Competitive advantages:

good price, reliable quality, guarantee of delivery,good after service

Color Imagination LED Lighting Limited was founded by several young but professional and experienced lighting engineers in early 2007. It mainly designs and manufactures energy saving stage lighting fixtures. Though it was young, its good quality products and service attracted different people both overseas and domestic. It growed fast in a very good way…

As the industry’s development and the customers request, Color Imagination began more research and manufacturing pro lighting fixtures ranging from OEM, ODM to branding business. Though Color Imagination gained good reputation and market share in pro lighting field domestically and overseas, we keep on seeking for a better way and for providing our beloved customers with up-to-date lighting products. Due to its farseeing vision, Color Imagination mainly focus on LED lighting industry specifically including stage fixtures, wall washer fixtures, and so on.

With years of development, Color Imagination has grown up as a main LED lighting designer and supplier in this potential new energy industry. Color Imagination also insists to be guided by advanced research theories, management solutions and quality control system, with a goal growing as the leader in LED industry.

Color Imagination LED Lighting Ltd pursues an approach of excellence in design, manufacture, usability and aftersales service in our business dealings. The company compromises its multifunctional research with development system and other corporate enginery. We always keep to be guided by unexceptionable professional spirit and integrity of the enterprise concept, customer-centered development purposes, and strive to continuously innovate, and to provide our customers more top LED or energy saving fixtures together with effective on-time warm services. Nowadays Color Imagination has been highly recognized and recommended by hundreds of both domestic and worldwide customers covering branding field or OEM/ODM due to its conceptual understanding and mastering towards LED/energy saving technology. Its brand name Color Imagination is growing up only several years’ of efforts. Color Imagination’s products ranges from 50W/90W/150W LED SPOT/BEAM, 180W/230W/330W BEAM/SPOT(SHARPY), CREE QUAD WASH and ZOOM, Outdoor/Indoor LED Par, etc. No matter whom you are and where you are, you will be satisfied by Color Imagination if only an our fixture being with you.
