Party Disco DJ Stage Light Mini Gobo DMX 50W Beam LED Moving Head
Light
Quick Detail
The MINIBEAM 50 features a 7500K 50W LED with high intensity and efficiency. It produces very
high light output much higher than the 90W beam,through a specific
2° optic system. The PAN/TILT integrates in fast and quiet movement.
It offers a full complement of professional characteristics, including a stctic gobo wheel (17 gobos plus
open), a color wheel (14 colors plus open), a 8-facet prism, 0-100% linear LED dimmer, variable speed
shutter/strobe.
Features
> A 50W white LED lamp, 7500K
> 50000 hours life span and low power consumption
> 8/16 bit smooth and precise resolution for PAN/TILT movement
> 540°/630° PAN and 270° TILT movement
> Scan position memory, auto reposition after unexpected movement

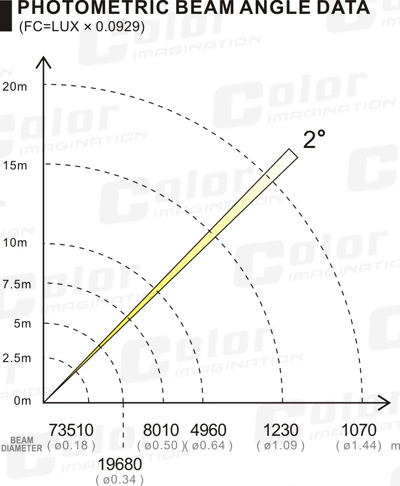

> Specific optic system with 2° projection angle
> Improved optics and flat beam field
> 1 gobo wheel with 17 gobos plus open
> 1 Color wheel with 7 colors plus open
> Variable direction rainbow effect with speed adjustable
> 1*8 facet prism with variable speed and direction
> 1 Effect wheel with 3-facet prism,linear prism and forst filter with variable speed and
direction
> 0-100% linear LED dimmer
> 25T/sec high speed LED shutter*strobe effect with variable speed
> Preset variable/random strobe and dimming pulse effect
> 9/11 DMX channels USITT DMX-512
> DMX512, master-slave, and sound activated controllable or auto
operation (7 built-in programs)
> DMX recorder and edit function integrated
> Red background LED display
> Powercon connector IN
> 3-pin XLR connectors IN/OUT
> Fan cooling system
> Constant temperature readout and management function
> -35°C~45°C max ambient temperature
> IP20 protection rating
> 55dB at 3’dB rating
> 2*1/4 turn fastening Omega clamps
> 1*Safety attachment point
Specification
> Input Voltage:AC90-260V 50/60Hz
> LED Quantities:1*50W white LED
> Control Signal:DMX512,master-slave and sound activated or auto
operation
> Control Channel: 9/11 DMX channels USITT DMX-512
> Power Consumption:125W

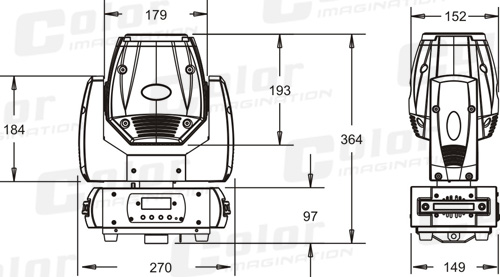

> Dimensions:149(D)*270(W)*364(H)mm
> Packing Dimensions:350(D)*450(W)*240(H)mm
> Net Weight: 5.8kg
> Gross Weight: 6.8kg
Applications
Disco and Club, Band performance, Stage show, Road show, Live
concerts
