2017 Color Imagination lightweight housing moving head beam

The MINIBEAM 200PRO/230PRO/280PRO is a fully new design by Color Imagination,aiming to bring a very compact and lightweight housing moving head beam,as always,with very high light output and even coverage field,to the market.The fixture is integrated with a full compplement of professional characteristics,including a static gobo wheel,color wheel,8-Facet rotating prism;frost filter;motorized linear focus;variable speed shutter/strobe;and 0-100% machanical dimmer,color time and gobo time controllable

Features:

> 2000 hours rated lamp source

> Electronic ballast and power supply

> Smooth and precise resolution for PAN/TILT movement

> 630°/540°/360°PAN and 270°/180°/90°TILT movement

> Scan position memory,auto reposition after unexpected movement

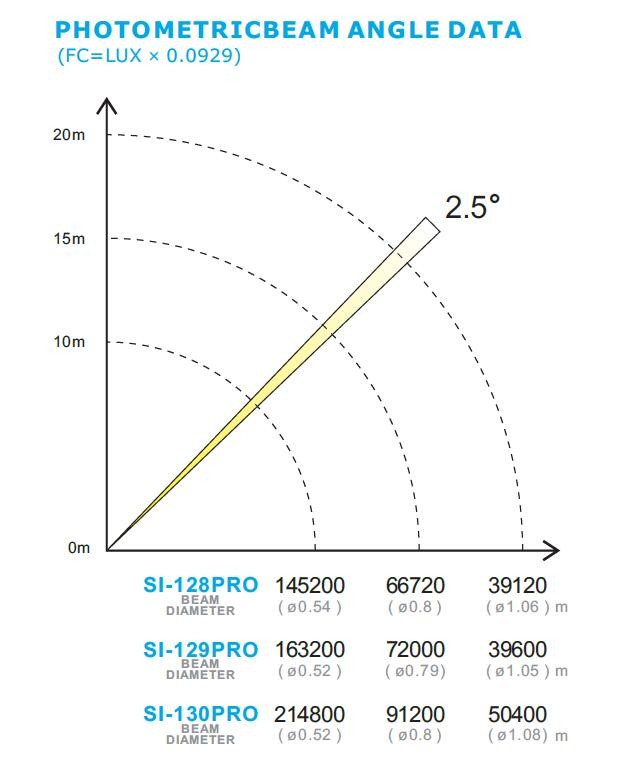

> 2.5°beam angle

> Improved optics and flat beam field

> No need for adjustment for reflector or lamp

> anti-reflection 136mm front lenses

> 1 static gobo wheel with 16 gobos plus open

> variable direction rainbow effect with speed adjusable

> Motorized focus from near to far(2.5M-30M)

> 8-facet prism with speed adjustable and and direction

> Variable frost fliter(Hybrid effect for wash)

> Dual flag mechanical dimming system

> 20T/sec high speed LED shutter/strobe effect with variable speed

> Preset variable/random strobe and dimming pulse effects

> Vector mode with blackout MIB function

> 13/15DMX channels USITT DMX-512

> DMX512, master-slave and sound activated and auto operation(8 built-inprograms)

> DMX recorder and edit function integrated

> 2.4' TFT LCD display(320*240pix)

> Display reversible for up side down application

> Powercon IN/OUT

> 3-pin XLR connectors IN/OUT

> Fan cooling system

> Constant temperature readout and management function

> Lamp using time readable on the display

> -35-45°C max ambient temperature

> IP20 protection rating

> 55dB at 3'dB rating

> 2*1/4 turn fastening Omega clamps

> 1*safety attachment point available

Specifications:

> Input Voltage (V): AC90-260V 50/60Hz

> Light source:1*PHILIP 200W lamp

1*230W OSRAM lamp

1*280W OSRAM lamp

> Control signal: DMX512, master-slave and sound activated and auto operation

> Control channel:13/15 DMX Channels USITT DMX-512

> Power consumption: 230W 270W 330W

> Dimensions:203(D)*348(W)*434(H)mm

> Packing Dimensions:490(D)*370(W)*375(H)mm

> Net weight: 13.2kg

> Gross Weight: 15.2kg
