2017 latest DOTZOOM 60F with ZOOM, PRISM, FROST, FLOWER EFFECT

and infinite PAN/TILT movement

The DOTZOOM 60F(SPIKIE) is an innovatative LED BEAMWASH moving head with infinate(continuous) PAN/TILT movements that provides new dynamic function to the stage.It uses a single 60W OSRAM LE RTDUW S3WP 4-in-1 LED source(RGBW) with a specially designed high resolution 110mm wide front glass lens.The lightweight and compact fixture features a smooth but fast zoom from 2.5°-45° producing solid beam(both soft edge with a frost filter and sharp edge) and even wash effect.There is another unique feature,Flower effect,that creats sharp multicoloured spikes of light,rotating in both directions at variable speed.Additionally,each SPOT in the flower is able to rotate in both directions which helps to bring much nicer effect to this fixture.

Features:

> 1*60W OSRAM LE RTDUM S2WP 4-in-1 LED(RGBW)

> 50,000 hours lifespan and lower power consumption

> Each color controllable individually

> Outstanding intense BEAM effect with remarkable color mixing coverage

> Specific high resolution 110mm front glass lens

> Flicker free sources management

> 8/16 bit smooth,fat and precise infinite(continuous) PAN/TILT movement

> Scan position memory, auto reposition after unexpected movement

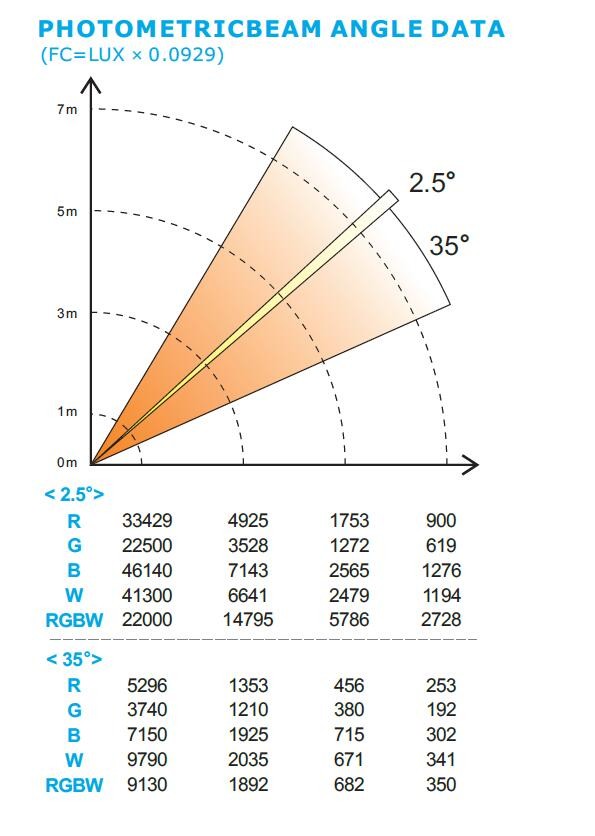

> Smooth,quite and fast motorized zoom from 2.5°-35°(flower mode)/4°-35°(wash mode)

> 8-facet prism rotating in both directions with variable speed

Flower effect creating spectacular stunning effects in the air(clear image at 30°)

> Each spot (square four color) in the FLOWER rotatable creating even nicer effect

> High speed strobe effect with 1-25 flashes per second

> Random strobe effect and pulse strobe effect available

> 0-100% smooth linear LED dimmer

> 8 internal programs available

> 16/18 DMX channels USITT DMX-512

> DMX512, master-slave, and sound activated controllable or auto operation

> High definition blue LCD display with 4 control buttons

> Efficient low noise self adjusting fan cooling system

> Constant temperature readout and management function

> POWERCON IN/OUT

> 3-Pin XLR connectors IN/OUT

> DB rating @ 1M=54.1dB

> IP20 protection rating

Specifications:

> Input Voltage (V): AC90-260V 50/60Hz

> Light source:1*60W OSRAM LE RTDUM S2WP 4-in-1 LED(RGBW)

> Control signal: DMX512, master-slave and sound activated and auto operation

> Control channel:16/18 DMX Channels USITT DMX-512

> Power consumption: 145W

> Dimensions:262(D)*176(W)*386(H)mm

> Packing Dimensions:190(D)*260(W)*360(H)mm

> Net weight: 8.4kg

> Gross Weight: 10.5kg
