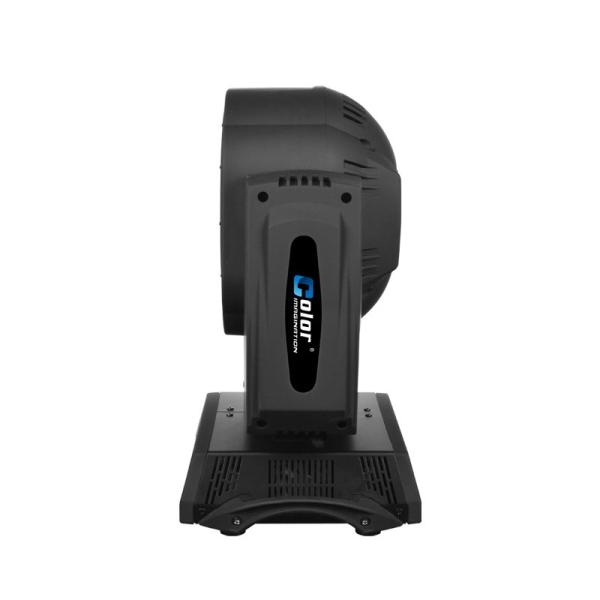

The FLYEYE 1915F is a breathtaking and imaginative stage performer that provides completely high performance wash effect, beam effect and visual effects. It features 19PCS OSRAM OSTAR 15W 4-in-1 RGBW LEDs integrated in specially designed optical lens with awesome lumen ratio in the front. The lens system is capable of rotating possibility to create multi petal-like micro fine rays that are programmable for individual colors, as each LED and each color is controllable independently. The micro rays could be opened and closed to produce dynamic graphic lighting effects.The ZOOM system ranges from 4° to 60°with smooth and quiet working.

The FLYEYE provides 6 DMX modes that fulfill the needs of different professional lighting designers. It’s with fast, quiet and precise PAN/TILT movement, and low noise cooling system though it’s a high power light. It’s available for high power need live concerts, TV studios, theaters, DJ shows, clubs, weddings, etc.

Description:

1. 19*15W OSRAM OSTAR 4-IN-1 RGBW LEDs
2. 50000 hours life span and low power consumption
3. Each color and each LED controllable individually
4. 8/16 bit smooth and precise resolution for PAN/TILT movement
5. Scan position memory, auto reposition after unexpected movement
6. Specific high precision optic lens
7. Variable direction rotating front lens
8. 4°-60°Smooth electronic linear zoom
9. Brilliant hard beam effects at 4°
10. Pure and even wash coverage effects at 60°
11. Petal-like micro beam effects
12. Pixel patterning macro effects
13. Built-in running programs
14. Built-in color and graphic effect macros
15. 0-100% linear LED dimmer
16. 1-25T/sec high speed LED shutter/strobe effect with variable speed
17. Preset variable/random strobe and dimming pulse effect
18. 21/23/35/78/92/97 DMX channels USITT DMX-512
19. DMX512, master-slave, and sound activated controllable or auto
20. operation
21. DMX recorder and edit function integrated
22. High resolution graphic LCD display
23. POWERCON connector IN/OUT
24. 3-pin XLR connectors IN/OUT
25. Aluminium structure with die-cast plastic cover
26. Two side handles for transportation
27. PAN lock for transport and maintenance
28. High efficiency low noise cooling system
29. Constant temperature readout and management function
30. 45°C max ambient temperature
31. IP20 protection rating
32. 55dB at 3’dB rating
33. 2*1/4 turn fastening Omega

Applications:

live concerts, TV studios, theaters, DJ shows, clubs, weddings, etc.

Specifications :

• Input Voltage:AC90-260V 50/60Hz
• LED Quantities:19*15W OSRAM OSTAR 4-IN-1 RGBW LEDs
• Control Signal:DMX512, master-slave and sound activated or auto
• operation
• Control Channel: 21/23/35/78/92/97 DMX channels USITT DMX-512
• Power Consumption: 450W
• Dimensions:253(D)*358(W)*494(H)mm
• Packing Dimensions:333(D)*438(W)*564(H)mm
• Net Weight: 15kg
• Gross Weight: 17kg

Competitive advantages:

Our products are widely use in:lighting and entertainment,such as stage,bar,home party,disco,wedding,theatre,music concert,activity,events,organization atc.

Color Imagination LED Lighting Limited was founded by several young but professional and experienced lighting engineers in early 2007. It mainly designs and manufactures energy saving stage lighting fixtures. Though it was young, its good quality products and service attracted different people both overseas and domestic. It growed fast in a very good way…

As the industry’s development and the customers request, Color Imagination began more research and manufacturing pro lighting fixtures ranging from OEM, ODM to branding business. Though Color Imagination gained good reputation and market share in pro lighting field domestically and overseas, we keep on seeking for a better way and for providing our beloved customers with up-to-date lighting products. Due to its farseeing vision, Color Imagination mainly focus on LED lighting industry specifically including stage fixtures, wall washer fixtures, and so on.

With years of development, Color Imagination has grown up as a main LED lighting designer and supplier in this potential new energy industry. Color Imagination also insists to be guided by advanced research theories, management solutions and quality control system, with a goal growing as the leader in LED industry.

Color Imagination LED Lighting Ltd pursues an approach of excellence in design, manufacture, usability and aftersales service in our business dealings. The company compromises its multifunctional research with development system and other corporate enginery. We always keep to be guided by unexceptionable professional spirit and integrity of the enterprise concept, customer-centered development purposes, and strive to continuously innovate, and to provide our customers more top LED or energy saving fixtures together with effective on-time warm services. Nowadays Color Imagination has been highly recognized and recommended by hundreds of both domestic and worldwide customers covering branding field or OEM/ODM due to its conceptual understanding and mastering towards LED/energy saving technology. Its brand name Color Imagination is growing up only several years’ of efforts. Color Imagination’s products ranges from 50W/90W/150W LED SPOT/BEAM, 180W/230W/330W BEAM/SPOT(SHARPY), CREE QUAD WASH and ZOOM, Outdoor/Indoor LED Par, etc. No matter whom you are and where you are, you will be satisfied by Color Imagination if only an our fixture being with you.
