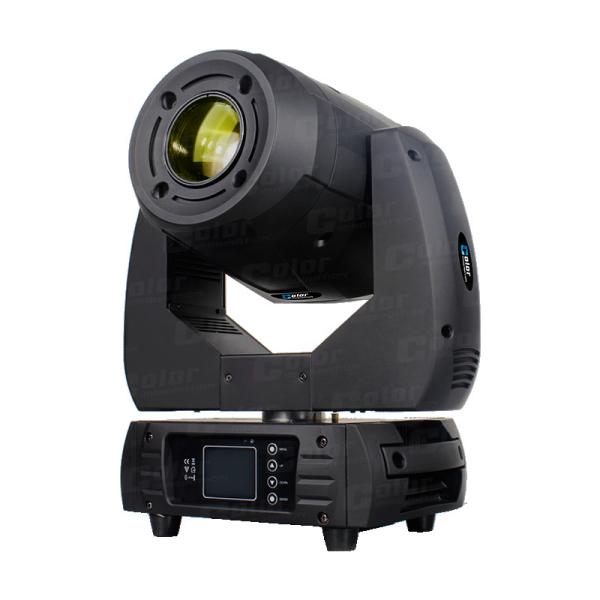

250W 7500K White LED Moving Head Spot For Large Scale Live Concerts, TV Productions, Road shows, Clubs

It’s another breakthrough high power LED moving head spot with a very smooth and precise linear motorized zoom ranging from 11°-23° built into a very compact and light weight stylish MINI housing. The MINISPOT
250Z features a 7500K 250W LED with high intensity and efficiency through a set of high resolution glass lens which helps to provide extremely clear and even spot coverage. It offers a full complement of other professional characteristics, including a rotating gobo wheel, static gobo wheel, color wheel, a 3-facet prism, linear electronic focus, frost filter, 0-100% linear LED dimmer, variable speed shutter/strobe. It’s fast and quiet moving head with smooth PAN/TILT movement.

The MINISPOT 250Z is perfect option for large scale live concerts, TV productions, road shows, clubs, etc.

Features:

* A 250W white LED lamp,7500K
* 50000 hours life span and low power consumption
* 8/16 bit smooth and precise resolution for PAN/TILT movement
* 540°/630°/ 360°PAN and 270°/180°/90° TILT movement
* Scan position memory, auto reposition after unexpected movement
* 13°Beam angle
* Specific high precision glass optic system
* 1 Rotating gobo wheel with 6 rotatable and interchangeable gobos plus open(3 glass gobos and 3 metal

gobos with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
* Gobo indexing available
* Gobo size 22. 9mm(external dimensions)/16mm(inner dimensions)
* 1 Static gobo wheel with 8 gobos plus open
* Gobo overlay (gobo morphing)
* 1 Color wheel with 7 colors plus open (available for half color mode)
* Variable direction rainbow effect with speed adjustable
* Gobo time and color time controllable
* 2. 5M- 15M electric focus
* An effect wheel with 3- facet prism/linear prism/frost filter (hybrid effect for wash)with variable speed and direction
* 0-100% Smooth linear LED dimmer(2 dimmer modes)
* 25T/sec high speed LED shutter/strobe effect with variable speed
* Preset variable/random strobe and dimming pulse effect
* 14/16/16/18 DMX channels USITT DMX-512 (Vector mode 18CH)
* DMX512, master- slave, and sound activated controllable or auto operation(7 built- in programs)
* DMX recorder and edit function integrated
* Sound control with sensitivity adjustment
* 2. 4" TFT LCD display (320*240pix) with 4 control buttons
* 180°Reversible for LCD display
* LCD display switch-off automatically after 60 seconds
* DMX signal monitoring indicator available
* Lower noise and efficient FAN cooling system
* Efficient low noise self adjusting fan cooling system
* Constant temperature readout and management function
* Over heat protection management
* Powercon IN/OUT with power switch and fuse
* 3- Pin DMX connectors IN/OUT
* DB rating@1M=54. 18dB
* IP20 protection rating
* -35°C to 45°C ambient temperature
* 2*1/4 turn fastening Omega Clamps ( Adaptable vertically and horizontally)
* 1*Safety attachment point
* CE (EMC/LVD) and RoHS certified

Specifications:

Input Voltage:AC90-260V 50/60Hz
LED Quantities:1*250W 7500K white LED
Control Signal:DMX512, master-slave and sound activated or auto operation
Control Channel: 14/16/16/18 DMX channels USITT DMX-512
Power Consumption: 290W
Dimensions:209(D)*367(W)*505(H)mm
Packing Dimensions:420(D)*445(W)*515(H)mm
Net Weight: 14kg
Gross Weight: 17kg
